Beiben 8×8 420HP Heavy Duty Van Cargo Truck
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Standard Packaging: | Nude Packing |
| Delivery Period: | 30 Days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 1000 Per Month |
Detail Information
Place of Origin
China
Brand Name
Beiben
Certification
ECE, GCC, ISO, DOT
Model Number
8x8 Van Truck
Tire:
11R22.5
Tyre:
New
Drive:
8x8
Feature:
Heavy Duty Load
Steering System:
Hydraulic Steering With Power Assistance
Load Capacity:
20-40 Tons
Highlight:
Beiben 8x8 cargo truck
,420HP heavy duty truck
,van cargo truck with warranty
Product Description

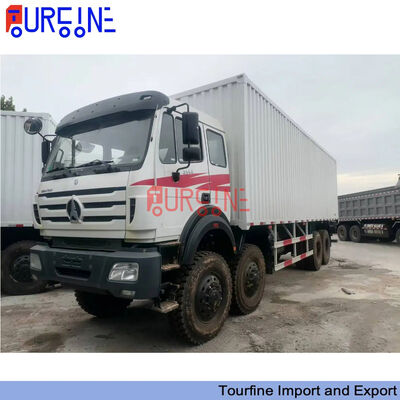

Beiben 8×8 420HP Heavy Duty Van Cargo Truck
The Beiben 8×8 420HP Heavy Duty Van Cargo Truck is engineered for demanding cargo transportation applications requiring robust power, superior traction, and reliable performance. Featuring an 8×8 all-wheel-drive system and a powerful 420HP WP12.420E32 engine, this truck excels in challenging road conditions and heavy-duty transport operations.
The vehicle incorporates an NG80B long flat roof cab, Beiben double reduction rear axles, and a spacious enclosed van body. The standard van box measures 9.6 × 2.4 × 2.4 meters, offering ample capacity for diverse cargo transportation needs.
Key Features
8×8 All-Wheel Drive
The advanced 8×8 drive system delivers exceptional traction and stability on rough, muddy, sandy, and uneven terrain.
420HP Powerful Engine
Powered by a WP12.420E32 engine producing 420HP, with an optional 380HP engine available to suit varying transportation requirements.
Heavy-Duty Chassis
The reinforced chassis frame and Beiben double reduction rear axle are specifically engineered for demanding heavy-duty transportation applications.
Large Van Cargo Body
The standard 9.6 × 2.4 × 2.4 meter enclosed van body provides a spacious and protected cargo area for secure transportation.
8×8 Heavy-Duty Drive System
The 8×8 all-wheel-drive configuration efficiently distributes power across all driven axles, ensuring optimal traction and stability on difficult road surfaces. The vehicle is powered by a WP12.420E32 420HP engine paired with a 12JS200T gearbox, with a 380HP engine option also available.
Robust Chassis for Heavy-Duty Applications
The Beiben cargo truck features a reinforced chassis frame with a section size of 317 × 75 × 8.5 + 7 + 8.5 mm. The front axle is rated at 8 tons, while the rear axle utilizes a 13-ton Beiben double reduction axle for maximum durability.
The vehicle can be equipped with 12.00R20 18PR tires or 12.00R24 tires, complemented by a two-stage air filter system designed for demanding operating environments.
Spacious Enclosed Van Cargo Body
The standard van body measures 9.6 × 2.4 × 2.4 meters, providing a large enclosed cargo space suitable for various transportation requirements. The enclosed design effectively protects goods from dust, rain, and external conditions during transit. Custom van body sizes are available to meet specific customer needs.
Practical Cab Design
The truck utilizes an NG80B long flat roof cab with left-hand-drive configuration. An optional front metal protector is available, and the vehicle comes equipped with a lamp protector for enhanced protection of front components.
Fuel Tank Options
The truck offers flexible fuel tank configurations including a 400-liter steel fuel tank or a 400 + 400-liter steel fuel tank setup. The larger capacity option can be selected based on transportation route requirements and operational needs.
Technical Specifications
| Product Name | Beiben 8×8 420HP Heavy Duty Van Cargo Truck |
| Driving Position | Left-Hand Drive (LHD) |
| Drive Type | 8×8 |
| Wheelbase | 1500+5050+1450 mm / 1500+4750+1450 mm |
| Cab | NG80B Long Flat Roof Cab |
| Engine | WP12.420E32, 420HP |
| Engine Option | 380HP Available |
| Gearbox | 12JS200T |
| Steering Gear | 8098 |
| Front Axle | 8 Ton |
| Rear Axle | 13 Ton Beiben Double Reduction Axle |
| Chassis Frame Section | 317×75×8.5 + 7 + 8.5 mm |
| Tire | 12.00R20, 18PR / 12.00R24 |
| Tire Quantity | 12 + 1 pcs |
| Fuel Tank | 400L / 400+400L Steel Tank |
| Air Filter | Two-Stage Air Filter |
| Lamp Protector | Equipped |
| Van Box Size | 9.6 × 2.4 × 2.4 m |
| Van Box Options | Other Sizes Available |
Applications
With its 8×8 drive system, powerful engine, and large enclosed cargo body, the Beiben Van Cargo Truck is ideal for various heavy-duty transportation applications.
Long-Distance Cargo Transportation
Construction Projects
Mining Areas
Infrastructure Projects
Heavy-Duty Cargo Transportation
Challenging Road Conditions
Frequently Asked Questions
What is the drive type of the Beiben cargo truck?
The truck uses an 8×8 all-wheel-drive configuration for maximum traction and stability.
What engine does the truck use?
The standard engine is a WP12.420E32 engine rated at 420HP. A 380HP engine option is also available for different operational requirements.
What is the standard van box size?
The standard van box size is 9.6 × 2.4 × 2.4 meters. Custom sizes are available according to specific customer transportation needs.
Is the truck available with different fuel tank configurations?
Yes. The truck can be equipped with either a 400L steel fuel tank or a 400 + 400L steel fuel tank configuration for extended range.
Is the truck available in left-hand drive?
Yes. The standard configuration is Left-Hand Drive (LHD).
Can the van body size be customized?
Yes. Alternative van body sizes are available to accommodate specific transportation requirements and cargo types.
