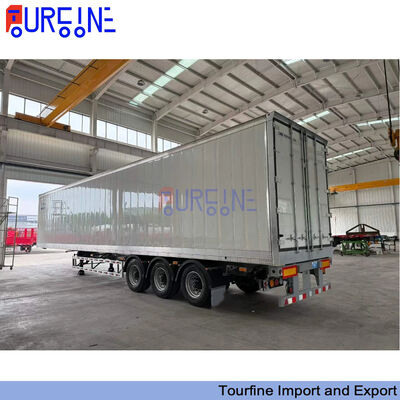

30 Ton 3 Axle Reefer Semi Trailer for Cold Chain Transportation
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Nude Packing |
| Delivery Period: | 30 Days |
| Payment Method: | L/C,T/T |
| Supply Capacity: | 1000 Per Month |
Detail Information
Place of Origin
China
Brand Name
CIMC
Certification
ECE, CE, ISO9001, DOT, CCC, ISO/TS16949
Model Number
TFR03
Axle:
13 Ton Fuwa Brand
Suspension:
Leaf Spring Suspension
Material:
Steel
King Pin:
2"(50mm)or3.5"(90mm) JOST
Highlight:
30 ton reefer semi trailer
,3 axle cold chain trailer
,reefer trailer for transportation
Product Description
Refrigerated Semi Trailer
30 Ton 3-Axle
30 Ton 3-Axle
Refrigerated Semi Trailer
Heavy-duty refrigerated semi trailer designed for temperature-controlled cargo transportation.
30 T Payload
-20°C Cooling Temperature
3 Axles
13.3 M Inner Length
01 / Refrigerated Body
Spacious and Insulated Cargo Body
Designed for temperature-controlled cargo transportation with insulated wall panels and a ventilated floor structure.
Refrigerated Cargo Space
The interior provides a large cargo area suitable for cold-chain transportation and temperature-sensitive goods.
13,300 mm Inner Length
2,465 mm Inner Width
2,520 mm Inner Height
02 / Construction Detail
Floor Structure & Ventilation Detail
Designed for Refrigerated Cargo
The floor and insulation structure combines fiberglass construction with ventilation channels for the refrigerated cargo body.
102 mm Fiberglass Floor
25 mm Ventilation Channels
82 mm Fiberglass Wall
40 Polyurethane Density
03 / Technical Data
Technical Parameters
| Item | Specification |
|---|---|
| Product Type | Refrigerated Semi Trailer |
| Payload | 30 Tons |
| Curb Weight | Approx. 8.2 Tons |
| External Dimensions | 14,500 × 2,600 × 4,000 mm |
| Internal Dimensions | 13,300 × 2,465 × 2,520 mm |
| Kingpin | 90# Assembly Type |
| Suspension | 3 Axle Mechanical Suspension |
| Axles | Mingyue 13 Ton × 3 |
| Tires | Linglong 12R22.5 × 12 |
| Rims | 9.00-22.5 × 12 |
| Landing Gear | JMCG 28 Ton |
| Main Beam | 300 mm Height / 12 mm Upper Flange / 8 mm Web Plate / 12 mm Lower Flange |
| Door Panel | 82 mm Fiberglass, Hot Pressed and Seamless |
| Floor | 102 mm Fiberglass with 25 mm Ventilation Channels |
| Insulation | Polyurethane, Density 40 |
| Refrigeration Unit | Zhengzhou Kaixue KST-2000 |
| Temperature | Down to -20°C |
| Braking System | 4 Double + 2 Single Air Chambers |
| Electrical | 24V / 7 Pin Socket / LED Lights |
| ABS | Kemi 4S/2M |
| Protection Guard | Aluminum Alloy |
| Tool Box | 2 Units |
04 / Refrigeration System
KST-2000
Equipped with a Zhengzhou Kaixue KST-2000 refrigeration unit for refrigerated transportation applications.
-20°C Temperature
KST-2000 Refrigeration Unit
05 / Chassis
Heavy-Duty Running Gear
3 Axles
13 Ton Axle Capacity
12R22.5 Tires
28 Ton Landing Gear
Cold Chain Transportation
Food Transportation Temperature-controlled cargo
Frozen Products Refrigerated cargo transportation
Cold Chain Logistics Long-distance refrigerated transport
